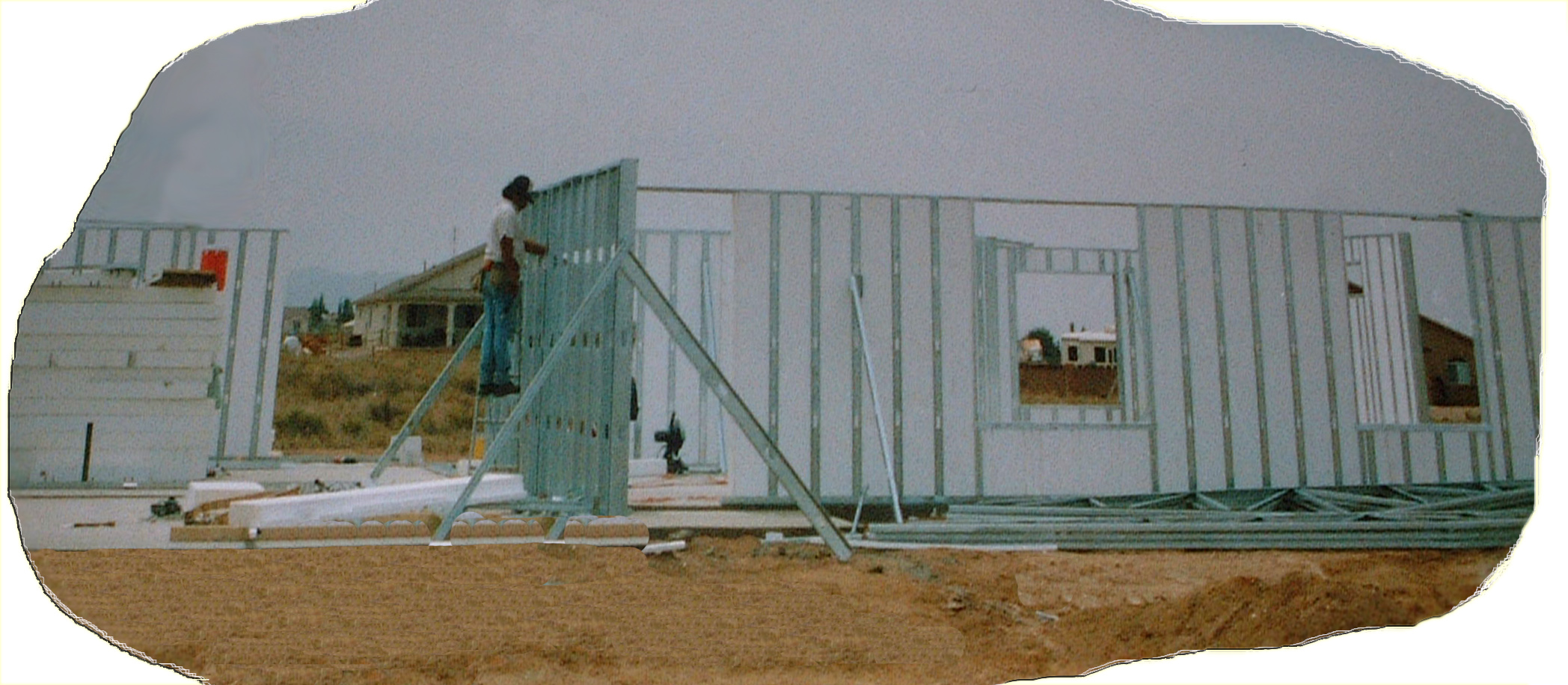

   WALLPANEL® was designed to overcome the  design shortcomings of other systems, and requires no special engineering or adaptation. The 18 gage studs are 16” OC, and staggered to support trusses at 24” OC, this eliminates the need for top plates to distribute the roof loads, since studs are at the standard 16” OC , sheet rock is attached in the same simple method as conventional construction.

The studs are braced every 4' of height for outstanding load support.

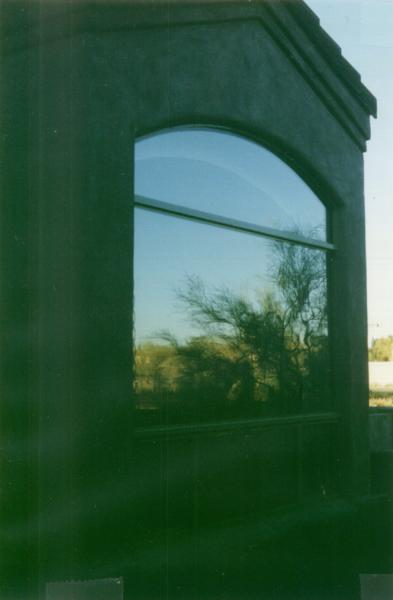

No exterior OSB sheeting is required, moisture barrier paper and lath can be attached directly to the panels, and stucco finished.

Because the studs are fixed longitudinally there is no transfer of heat and the insulation, is uninterrupted therefore more complete, the two pounds density Polystyrene foam, is more dense than other systems which use a one pound density, while they need  7” of unconventional thickness to achieve R-30, WALLPANEL®  can do R-30 with standard  6” thickness, and increase the R value up to R-60 on the same 6" thickness by coating the finished walls with our MulticeramicTM insulating coating.

We call this system SUPERTHERMAL©, The coating system will last a minimum of 25 years and  provide 20 minutes fire proofing while blocking sound by an additional   68%

The significant Difference :

WALLPANEL™ System, eliminates compliance concerns.

Walls are very fast and easily erected with minimum personnel.

The panels are of the standard 4" -  6" and  up to 12" of  thickness.

The studs are at the standard 16" on center spacing.

The design makes it possible to meet the 16" on center studs and simultaneously deliver,

Trusses support at 24" on center in the same panel without top plates for load distribution.

Pre-cut electrical carriers.

Pre-molded central vacuum lines cavities that are self aligned from panel to panel.

Pre-Molded high velocity heating air condition lines.

No Chlorofluorocarbons,

Consistent high R 30 - 40 - 60 values without decay.

Meets or exceeds the requirement of all major building codes.

The fastest build up Uncomplicated efficiency and highest insulation per inch of thickness No special engineered panels are ever needed Roof systems for simplicity and incredible sound and insulation comfort Attic less residential are incredibly easy to install WALLPANEL is the most economical system available

Solving global warming isn't only about installing majestic wind turbines and glistening solar energy systems in the desert. One of the cheapest, most effective, and safest ways to reduce global warming pollution is to increase our energy efficiency. In fact, by using energy efficiency technologies and today's know-how, we could cut our global warming pollution by a third or better.

In the United States, we're off to a good start - innovation and improvements over the past 30 years have allowed our economy to grow faster than our energy consumption. Unfortunately, in the next 22 years our electricity consumption is expected to grow by 25%. That'll mean an extra 550 million tons of CO2 each year that we'll have to reduce to stop global warming.

The good news is that by aggressively improving our energy efficiency now, we can eliminate this increase. It'll take leadership and conscientious decisions , but there are plenty of examples of how energy efficiency has worked. For example, people using energy-efficient appliances in 2007 avoided global warming pollution equivalent to nearly 27 million cars. If everyone did likewise -- and we similarly improved America's buildings, industry, and transportation -- we could reduce annual emissions equivalent to nearly 400 million cars. That's 2 billion fewer tons of carbon dioxide (more than 6,000 times the weight of the Empire State Building!).

Building for energy-efficiency: In the United States alone, buildings are responsible for 25-35% of greenhouse gas emissions. By making simple changes, like using the proper  insulation, we can save half or more of the energy it takes to heat, cool, light, and otherwise provide power to buildings. And, with buildings lasting for 40-50 years or more, efficiency choices we make now will last at least a generation.
